Pekanbaru Usb Lan / Lan To Usb / Ethernet To Usb

+Generic USB to lan
+Robot EA10 USB To Ethernet Adapter 100Mbps

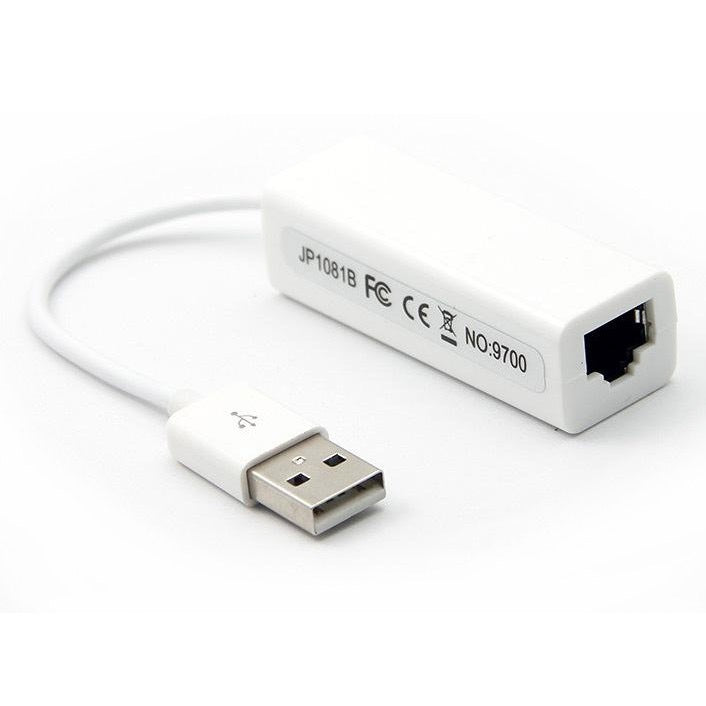

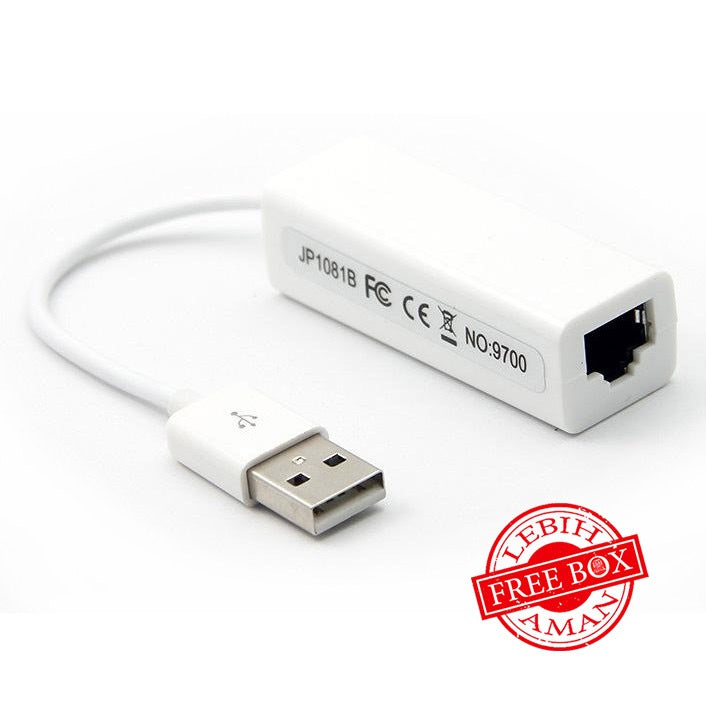

* Generic USB to lan:

Network Speed : 10Mbps or 100Mbps automatically
Connectors : 1 x RJ-45 Shielded Phone Jack

Features :
Integrated Fast Ethernet MAC, Physical Chip and transceiver in one chip
Supports 10 Mb/s and 100 Mb/s N-Way Auto-negotiation operation
Compliant to USB interface version 1.0/1.1/2.0
Full-Speed (12Mb/s) USB Device
Support all USB standard command
Supports Suspend/Resume detection logic
Supports 4 endpoints
- control endpoint with maximum 8-byte packet
- bulk in endpoint 64 bytes/packet
- bulk Out endpoint with 64 bytes/packet
- interrupt In endpoint with 8 bytes/packet
18K bytes SRAM built in. (2K bytes for Tx buffer, and 16K bytes for Rx buffer)
Uses 24C02 to store resource configuration, ID parameter, etc
Half/Full duplex 10/100Mbps operation
Supports Full Duplex Flow Control (IEEE802.3x)

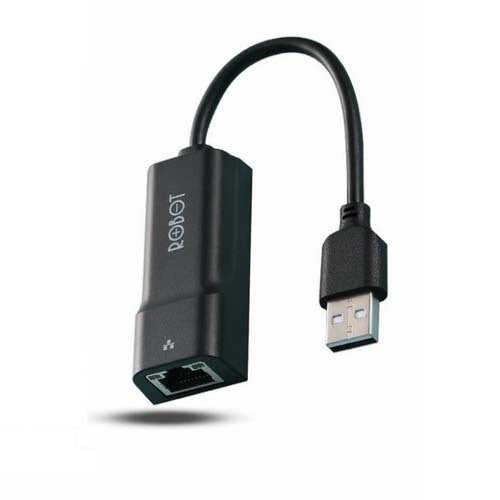

*Robot EA10 USB To Ethernet Adapter 100Mbps :

Features :
- Application : Notebook with USB A Interface
- Supported Operation System : Windows, Mac OS, Linux, driver needed for some OS

Specifications :
- Input : USB-A 2.0
- Output : RJ45 x1
- LAN Port : 10/100M Ethernet auto-adaptation
- Indicator : green light for link status, orange light for data transmission status
- Cable Length : 100mm
- OD : 4.2mm


#USB #LAN #RJ #RJ45 #USBtoLan #Robot #EA10 #USBLAN
